The customer needed to have a product that was more suitable to the harsh environment and could be not only reliable but also worked well within the existing set up.

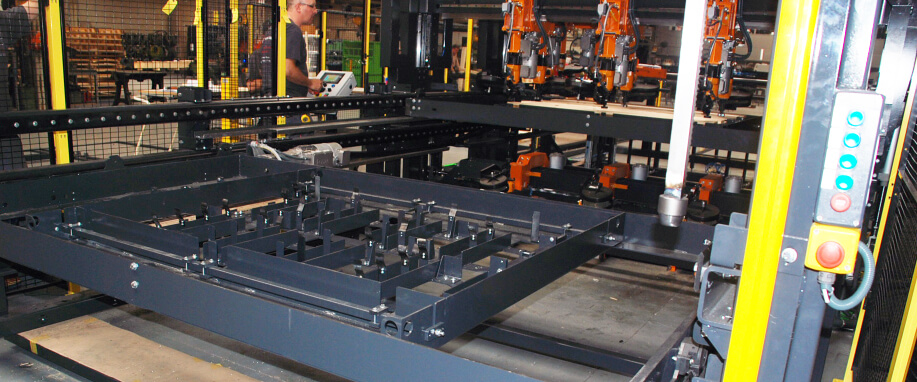

A GV3 linear guide system was provided to work within the harsh environment.
– 4 x LJ54CDR
– 4 x LJ54EDR
– 4 x RLFJ54CNS
– 4 x RLFJ54ENS
– 4 x L76 8240 P3
The customer has a reliable and maintenance free solution that no longer has any problems with dirt or the harsh environment.

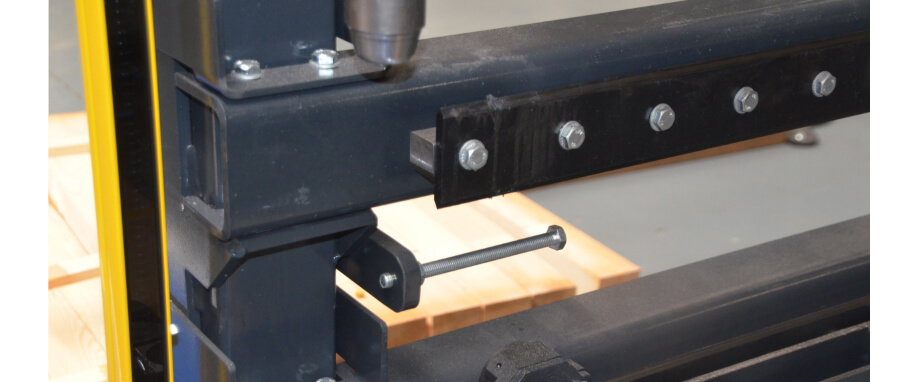

By mounting Hepco floating bearings they did not have to make a frame and what was used was adjustable in order to align the machine.
